AC protection box - 3.68kW - 20A - with surge protector - Single-phase

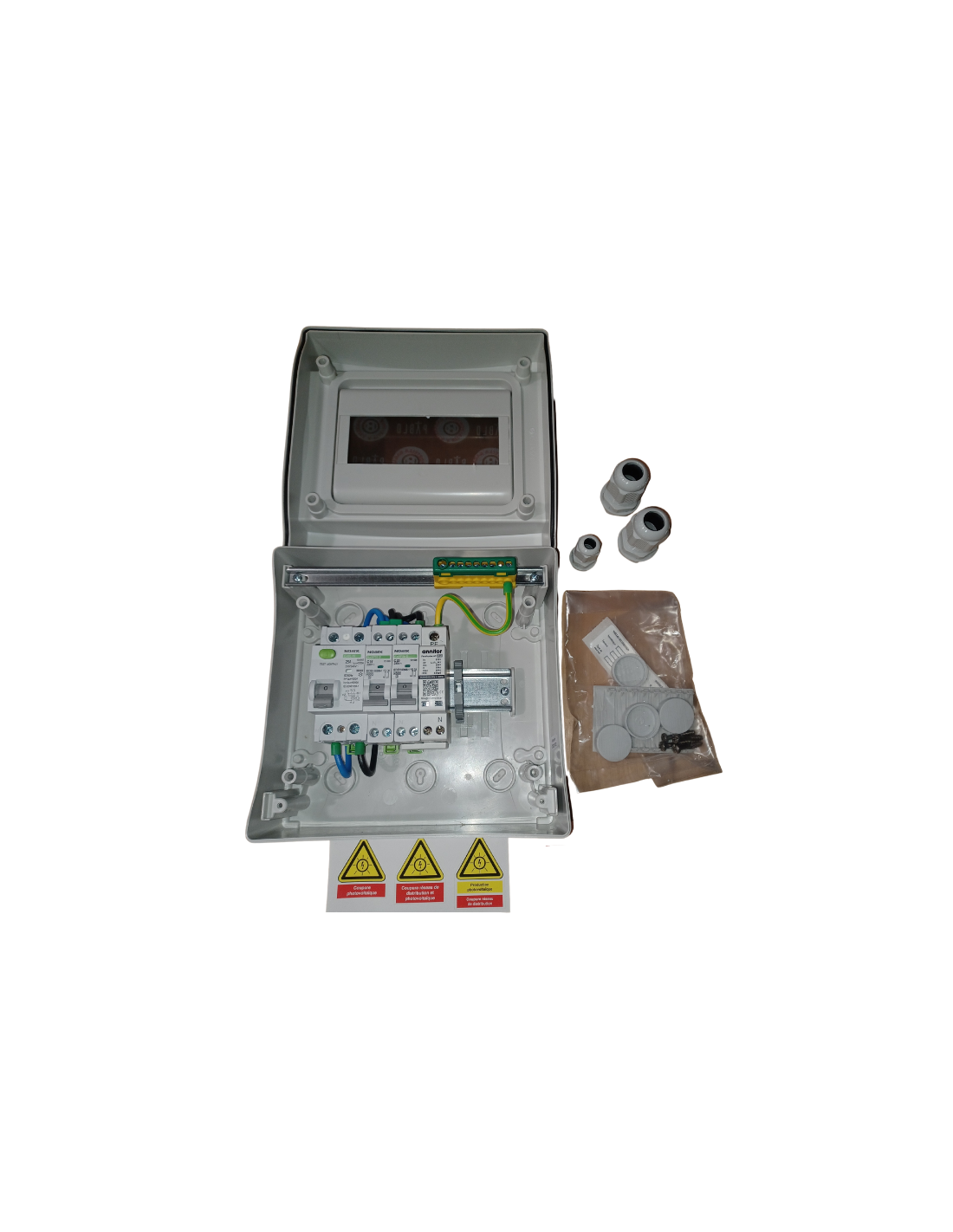

<p>AC 3KW photovoltaic protection box designed to protect your residential self-consumption solar installations.<br> <br> This box includes normative labeling and easy Plug&Play connections. Technical plans are provided.</p> <p>The AC box is installed between your inverter and your electrical panel, with the aim of isolating the photovoltaic installation from your network. An essential safety point in case of failure, it will also allow you to work on your inverter without having to trip the power to your house.</p> <p>All our boxes are equipped with components specially designed for solar systems.</p> <h2>Photovoltaic box composition:</h2> <h2></h2> <ul> <li>IP65 box dimensions 231X238X118 (dimensions may vary slightly depending on arrivals)</li> <li>1 25A 30mA type DCI residual current circuit breaker</li> <li>1 DPN 16A</li> <li>1 DPN 20A (surge protection)</li> <li>1 Ph/N 20kA type 2 surge protector</li> <li>Ph/N/Earth 10mm² connection terminal block</li> </ul> <h2></h2> <h2>Complies with UTE C15712-1 / NFC 15-100 standards</h2>
